B³ Spectrum
Spectrum Service offers over 10Gbps connectivity with market breaking pricing. Our service connects key data center locations in Japan.
By using the OOLS Wavelength Division Multiplexing (WDM) technology, we split the dark fiber capacity into wavelength grids (Spectrum) providing low cost high capacity connections. Customers can utilize the new transponder capabilities and use this spectrum grid for connections over 100Gbps, 200Gbps and 400Gbps and over. Spectrum can be a solution to balance the high bandwidth and low connectivity cost.
Why B³ Spectrum Services
Customer Benefits
- 1 Low Cost

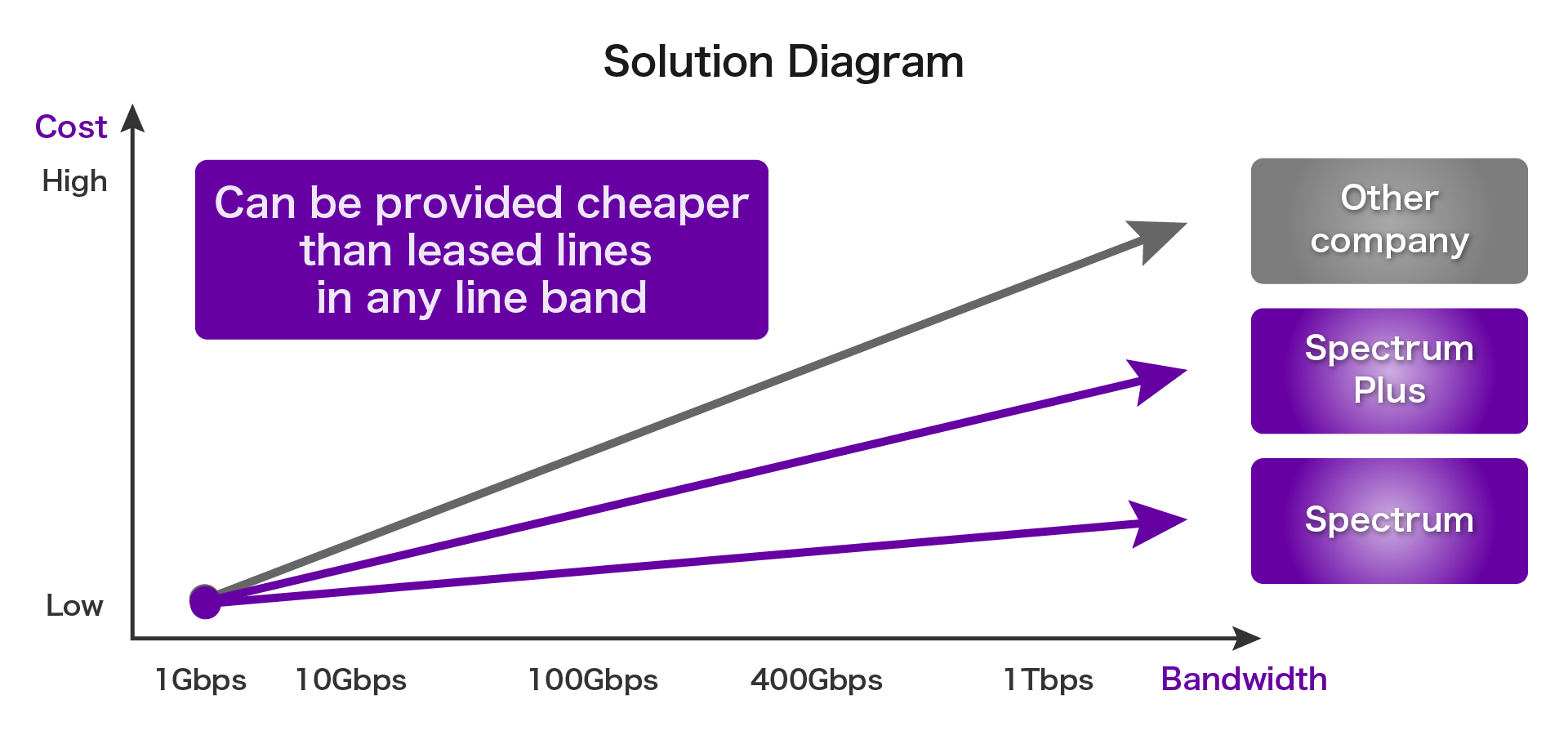

- Compared to the 100Gbps private leased circuit in the market, spectrum cost can be lower than half.
- 2 High Capacity Service
- Customers can utilize the new transponder capabilities and use this spectrum grid for connections over from 10Gbps to 400Gbps and more.
- 3 Reliability
- Dark fibers used for the Spectrum service are designed with fiber route diversity. Furthermore, physical BPF (Band Pass Filter) are used to ensure security in optical level.
- 4 Short Delivery Time
- Delivery time for this Spectrum is very fast. Spectrum Service (Spectrum Grid) or Spectrum Plus Service (Bandwidth) can be installed in One month after customer order.This can be a new solution for upgrading your data center connection.
- 5 24/7/365 maintenance support in Japanese and English and reliable SLA
- Offering 24/7/365 contact window in Japanese and English is available to provide on-site support as needed. In addition, SLA (Service Level Agreement) are set for specific services, and the monthly fee is reduced depending on the time required for recovery in the event of a failure.
- 6 Support for connection verification with customer equipment
- Support for verification to test compatibility of Spectrum with customer equipment as needed.
- 7 Cloud connectivity to AWS, Azure, Oracle, etc. also available
- It can be used for various purposes such as cloud connectivity and IP transit.
- 8 Covers a wide area of connections
- It covers a wide area from the Tama in the west to the Inzai in the east, including connections for office buildings other than data centers.
Service Structure
Details
B³ Spectrum

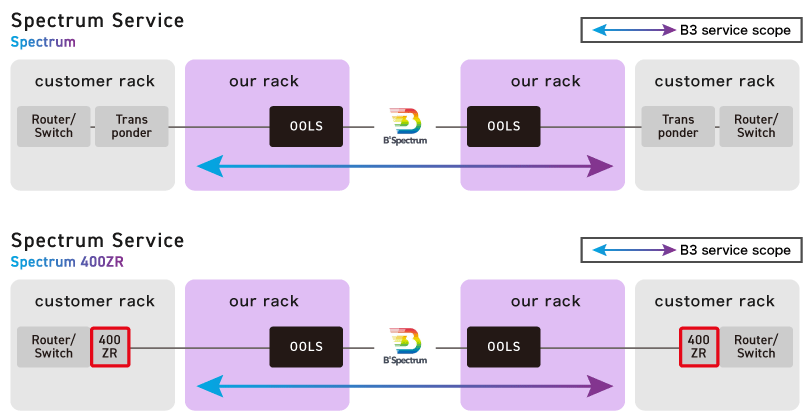

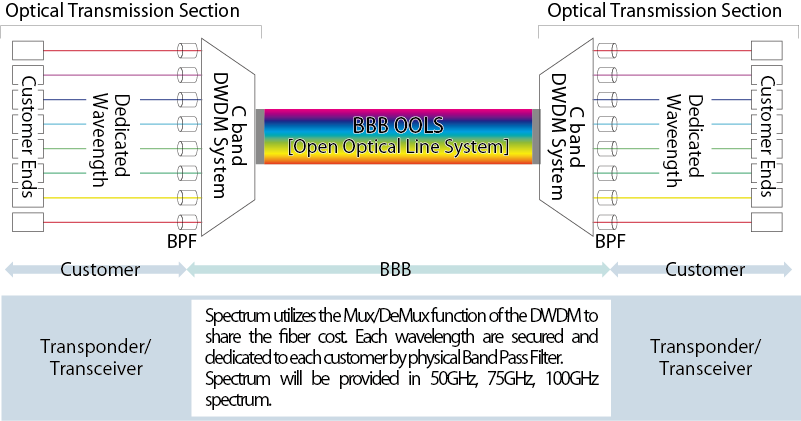

We perform wavelength division multiplexing on single-mode optical fiber to provide the optical fiber to customers on a wavelength (Spectrum) basis. Connections of at least 100Gbps are possible per single wavelength. Adopting a BPF (Band Pass Filter) prevents interference from other wavelength grid. Therefore, Customers use the service comfortably with high security level that blocks signals to parties other than the customer.
We have also adopted OOLS (Open Optical Line System) that supports a variety of transponders, allowing us to construct connections with Alien Wavelengths connection capabilities.
Alien wavelength connection tests with various transponder manufacturers and device vendors has been completed. These tests confirmed the OOLS connection requirements.
Factors such as optical intensity, frequency, and the tests validated communication quality via bit error testing.
Spectrum Price List
UNIT: JPY
| Menu | Single/ Dual |
Tokyo Metro Ring | Inzai Shiroi DC- Tokyo Metro Ring |
Mitaka Fuchu DC- Tokyo Metro Ring |
Inzai Shiroi DC- Mitaka Fuchu DC |
|---|---|---|---|---|---|
| 50GHz slot | Single | 100,000 | 200,000 | 200,000 | 350,000 |
| 100GHz slot | Press inquiries button for full pricing list. | ||||
| 400ZR | |||||
| 50GHz slot | Dual | ||||
| 100GHz slot | |||||
| 400ZR | |||||
*Monthly Pricing above is for 1year contract. Multiple year contract will have additional discount
(please contact B3 sales member for details).
B³ Spectrum Plus

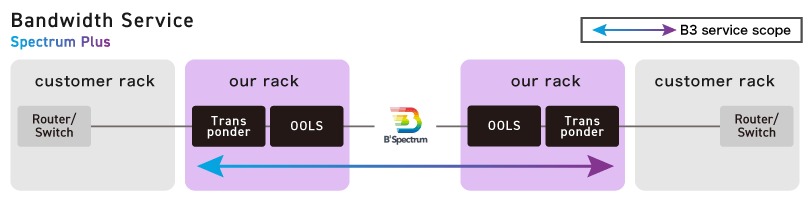

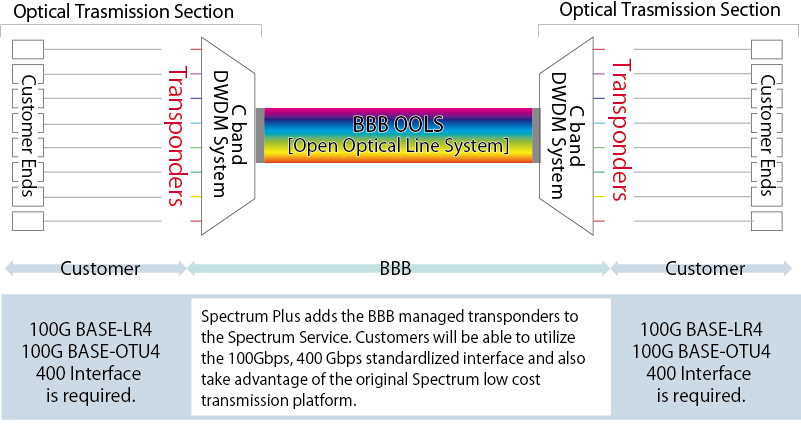

B³ will provide the B³ managed transponder service additional to the Spectrum service. Some customers will have difficulty procuring and operating the transponders and B³ will support this needs. Customer interface will be 100GBASE-LR4 and OTU4 and it will be equivalent to the private leased line in the market but much lower pricing.
Spectrum Plus Menu List
| MENU | Single/ Dual |
Tokyo Metro Ring | Inzai Shiroi DC- Tokyo Metro Ring |
Mitaka Fuchu DC- Tokyo Metro Ring |
Inzai Shiroi DC- Mitaka Fuchu DC |
|---|---|---|---|---|---|
| 10Gbps LR | Single | Press inquiries button for full pricing list. | |||
| 100Gbps LR4, OTU4 | |||||
| 400Gbps FR4 | |||||
| 10Gbps LR | Dual | ||||
| 100Gbps LR4, OTU4 | |||||
| 400Gbps FR4 | |||||
*Multiple year contract will have additional discount comparing with single year contract
(please contact B3 sales member for details).

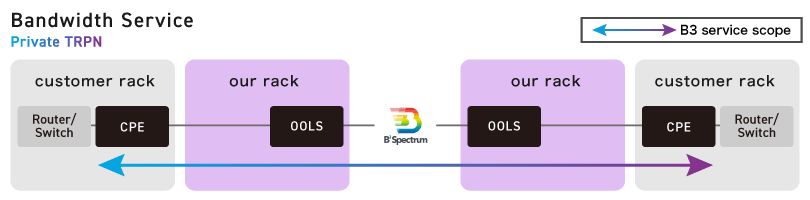

Private TRPN
For customers who want to connect to data centers or office buildings where are difficult to provide with our Spectrum Plus, with deploying our CPE in the customer's rack to expand the service area and it will be utilized as the private leased line in the market but much lower pricing.
Private TRPN Menu List
| MENU | Single/ Dual |
Tokyo Metro Ring | Inzai Shiroi DC- Tokyo Metro Ring |
Mitaka Fuchu DC- Tokyo Metro Ring |
Inzai Shiroi DC- Mitaka Fuchu DC |
|---|---|---|---|---|---|
| 10Gbps LR×10, SR×10 | Single | Press inquiries button for full pricing list. | |||
| 100Gbps LR4, OTU4 | |||||
| 10Gbps LR×10, SR×10 | Dual | ||||
| 100Gbps LR4, OTU4 | |||||
*Multiple year contract will have additional discount comparing with single year contract
(please contact B3 sales member for details).
-Optional Services-
XC Option
Provides Cross Connection services within the same Data Center, from B3 Spectrum rack to customer's rack.
-Optional Services-
Fiber Access
Provides Spectrum network to a Customer Building or Data Center outside of the Spectrum Data Center.
Service Area
Example

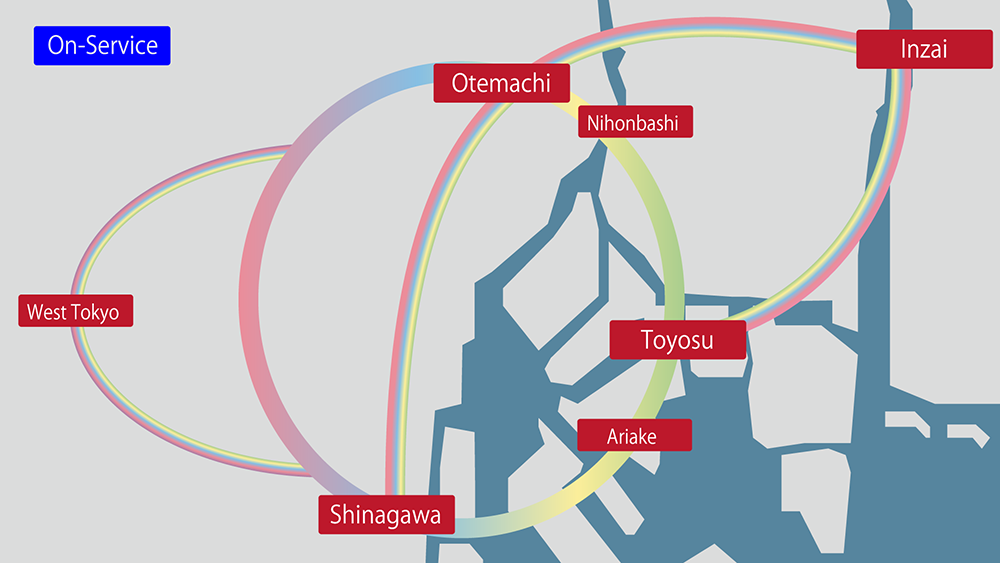

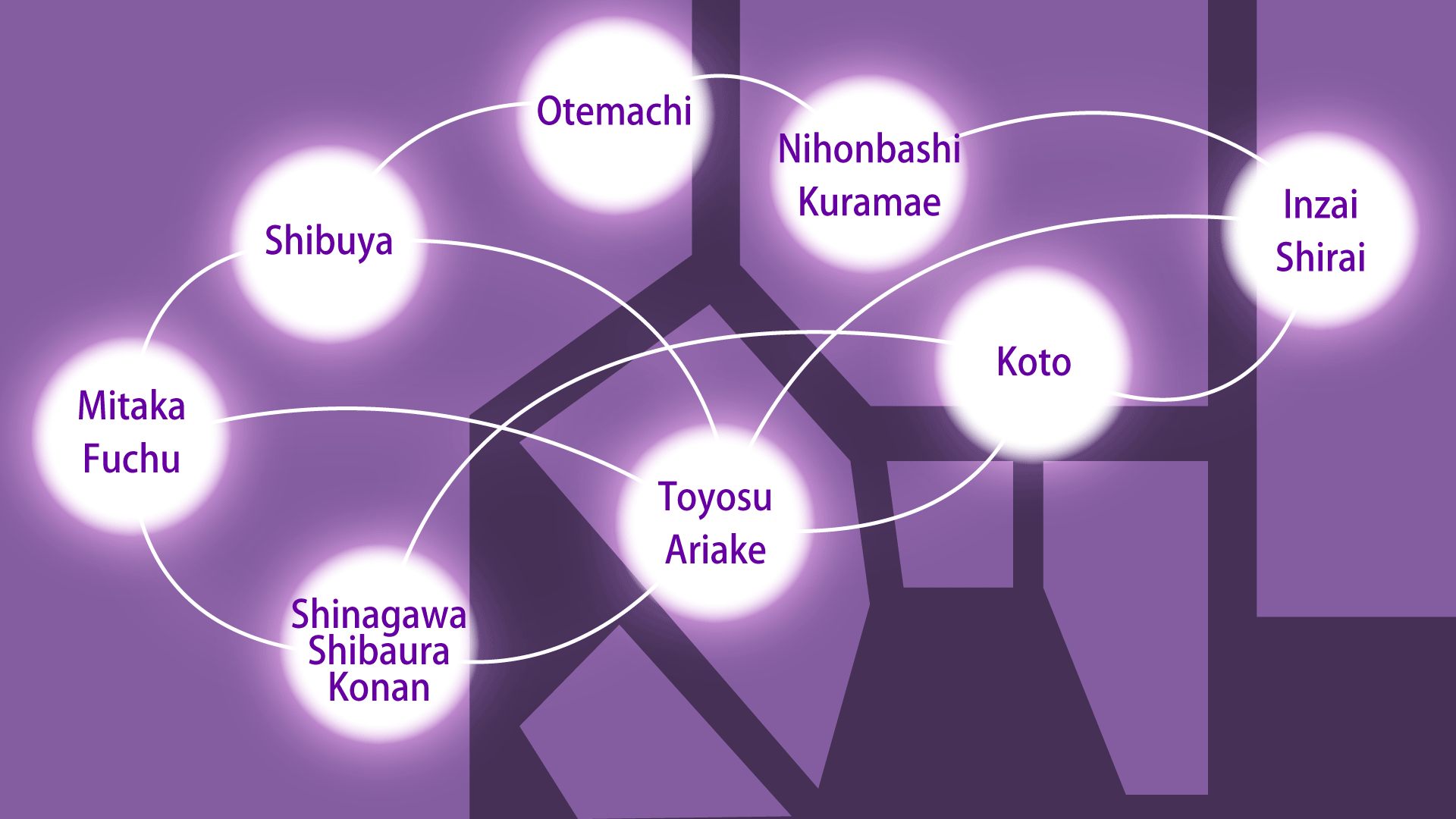

B³ Spectrum is available in the following areas.
Other areas not mentioned below, such as suburban areas of the Tokyo metro, suburban areas of Osaka metro, and long distance routes such as cable landing stations and between Tokyo and Osaka, are also in the planning stages of implementation.
In addition to data center to data center connections, we will also be able to provide connections to office building and cloud services. Please feel free to contact us using the inquiry form for more details about our services.
Other areas not mentioned below, such as suburban areas of the Tokyo metro, suburban areas of Osaka metro, and long distance routes such as cable landing stations and between Tokyo and Osaka, are also in the planning stages of implementation.
In addition to data center to data center connections, we will also be able to provide connections to office building and cloud services. Please feel free to contact us using the inquiry form for more details about our services.
